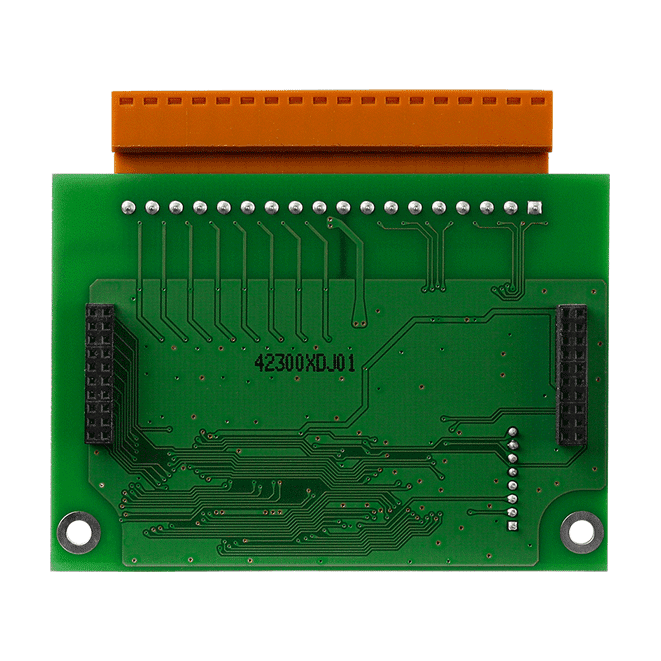

XW107 XW-board Expansion, 8-ch Dry DI and 8-ch Sink DO
XW107 CR XW-board adding 8 non-isolated dry-contact digital inputs and 8 NPN sink-type open-collector digital outputs to uPAC-5000, LP-51xx and WP-51xx PAC controllers.
- 8 non-isolated digital inputs, dry-contact type with source-type input configuration
- 8 non-isolated digital outputs, open-collector with NPN sink-type drivers
- Load voltage +10 VDC to 30 VDC; 100 mA per channel at 25 °C
- Overload protection rated at 1.4 A on the digital outputs
- Overvoltage protection on inputs rated at 30 VDC
- Plugs into uPAC-5000, LP-51xx and WP-51xx PAC series; one XW-board per PAC
63,00 € pro Stück
| 1–9 Stück | 63,00 € | |
|---|---|---|
| 10–30 Stück | 61,00 € | −3 % |
| ab 31 Stück | 60,00 € | −5 % |
Produktinformationen "XW107 XW-board Expansion, 8-ch Dry DI and 8-ch Sink DO"
The XW107 CR is an XW-board expansion card that adds discrete I/O to uPAC-5000, LP-51xx and WP-51xx PAC controllers. It provides eight non-isolated digital inputs for dry-contact signals and eight non-isolated digital outputs using open-collector, NPN sink-type drivers.
The digital outputs operate from a 10 to 30 VDC load supply, with a rated load current of 100 mA per channel at 25 °C and overload protection rated at 1.4 A. The inputs are rated with overvoltage protection up to 30 VDC. The board draws 0.2 W and measures 66 mm x 82 mm x 13 mm (W x L x H).
Each PAC accepts only one XW-board, so the XW107 CR suits systems that need a fixed set of eight inputs and eight outputs in addition to the controller's base I/O. It is rated for an operating range of -25 ~ +75 °C and is CE, UKCA, FCC, RoHS and WEEE certified.
Applications
- Adding discrete I/O to uPAC-5000, LP-51xx and WP-51xx PAC systems
- Monitoring dry-contact switch and relay-contact signals
- Switching sink-type loads at up to 100 mA per channel
| Product type: | Expansion Board |
|---|---|
| Interface: | XW-board |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Overvoltage Protection | 30 VDC |
| Digital Output | |
| Channels | 8 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ 30 VDC |
| Load Current | 100 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Power | |
| Consumption | 0.2 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
