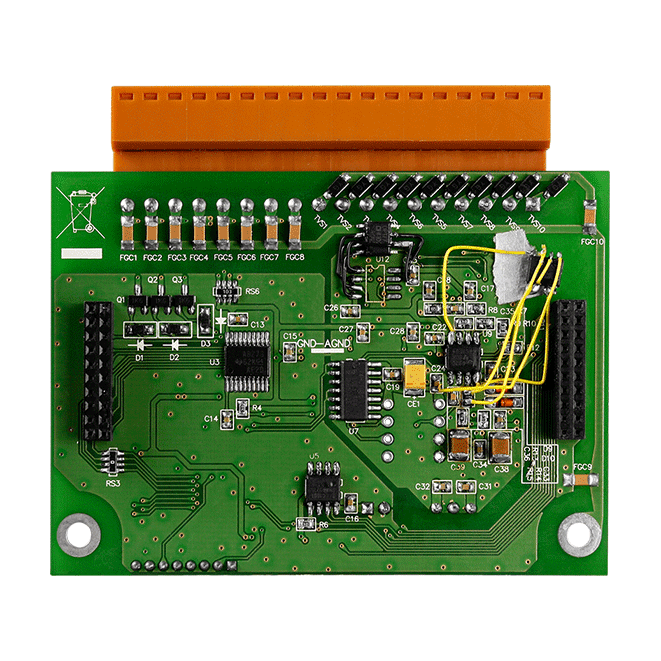

XW310 XW-Board, 4-ch Voltage Input, 2-ch Voltage Output, 3-ch DI/DO
XW310 CR expansion board for uPAC-5000, LP-51xx and WP-51xx PACs, adding 4 voltage inputs, 2 voltage outputs, 3 dry-contact digital inputs and 3 sink digital outputs.
- 4-channel non-isolated voltage input, ±10 V range, 12-bit resolution, 4 KHz sampling rate
- 2-channel non-isolated voltage output, ±10 V range, 12-bit resolution, 20 mA output capability
- 3-channel dry-contact digital input, 30 VDC overvoltage protection
- 3-channel open-collector sink (NPN) digital output, +10 VDC to 40 VDC load voltage
- 200 mA per channel load current at 25 °C with 1.4 A overload protection
- One XW-board per PAC, for uPAC-5000, LP-51xx and WP-51xx series
162,00 € pro Stück
| 1–9 Stück | 162,00 € | |
|---|---|---|
| 10–30 Stück | 157,00 € | −3 % |
| ab 31 Stück | 154,00 € | −5 % |
Produktinformationen "XW310 XW-Board, 4-ch Voltage Input, 2-ch Voltage Output, 3-ch DI/DO"
XW310 CR is an XW-board expansion module that adds mixed analogue and digital I/O to the uPAC-5000, LP-51xx and WP-51xx series. It combines four ±10 V voltage inputs and two ±10 V voltage outputs with three dry-contact digital inputs and three NPN sink digital outputs on a single board, so one controller can handle common field signals without additional I/O hardware.
Each PAC accepts only one XW-board, so the XW310 CR is best chosen when a controller needs this specific combination of channels in one slot. The non-isolated input and output channels suit compact control panels where the signals share a common reference, and the 40 VDC-rated open-collector outputs can switch loads at 200 mA per channel at 25 °C.
The board is rated for -25 to +75 °C operation and draws 0.9 W. Its 66 x 82 x 13 mm footprint keeps the expansion compact, and the XW310 CR carries CE, UKCA, RoHS and WEEE marking.
Applications
- Adding analogue and digital I/O to uPAC-5000, LP-51xx and WP-51xx controllers
- Reading voltage signals and dry contact states, and driving sink-type loads
| Product type: | Expansion board |
|---|---|
| Digital inputs: | 3 |
| Digital outputs: | 3 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Technische Daten
| Analog Input | |
|---|---|
| Channels | 4 |
| Range | ±10 V |
| Resolution | 12-bit |
| Sampling Rate | 4 KHz |
| Input Impedance | 1 M Ohm |
| Overvoltage Protection | ±30 VDC |
| Isolation | non-isolated |
| Analog Output | |
| Channels | 2 |
| Range | ±10 V |
| Resolution | 12-bit |
| Voltage Output Capability | 20 mA |
| Isolation | non-isolated |
| Digital Input | |
| Channels | 3 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Overvoltage Protection | 30 VDC |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ 40 VDC |
| Load Current | 200 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Power | |
| Consumption | 0.9 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
