iP-8811-MRTU 8-Slot Modbus RTU I/O Expansion Unit for I-8K and I-87K Modules
Serial Modbus RTU/ASCII expansion unit with 8 slots for I-8K and I-87K I/O modules, offering a 10 ~ 30 VDC isolated input and -25 ~ +75 °C operation for industrial monitoring and control.
- Modbus RTU/ASCII slave operation over serial ports
- 8 slots for I-8K and I-87K series I/O modules, with more than 50 supported module types
- Auto configuration and LED indicators for fault detection
- Redundant, 1 kV isolated power inputs across +10 ~ 30 VDC
- Operating temperature of -25 ~ +75 °C for harsh environments
- Dual watchdog, programmable power-on and safe values
613,00 € pro Stück
| 1–9 Stück | 613,00 € | |
|---|---|---|
| 10–30 Stück | 595,00 € | −3 % |
| ab 31 Stück | 583,00 € | −5 % |
Produktinformationen "iP-8811-MRTU 8-Slot Modbus RTU I/O Expansion Unit for I-8K and I-87K Modules"

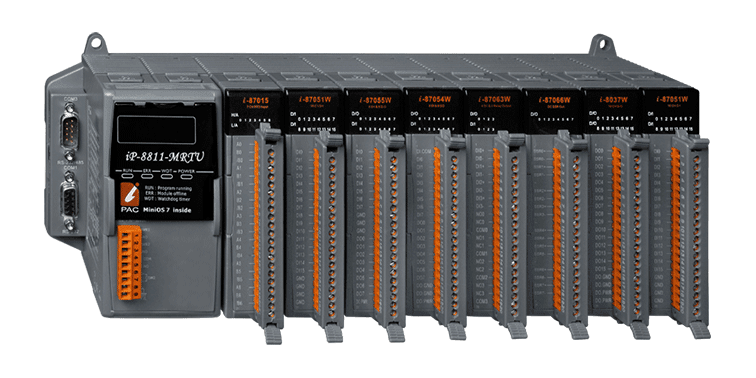

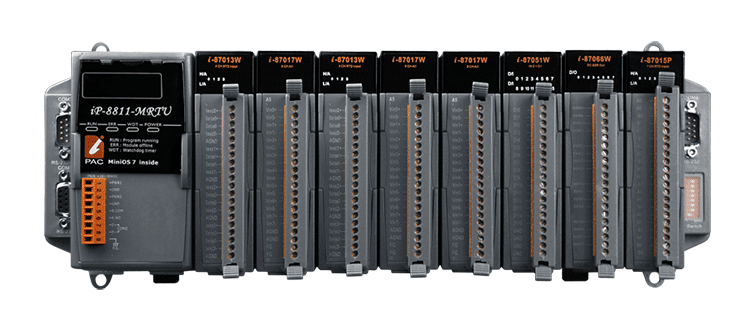

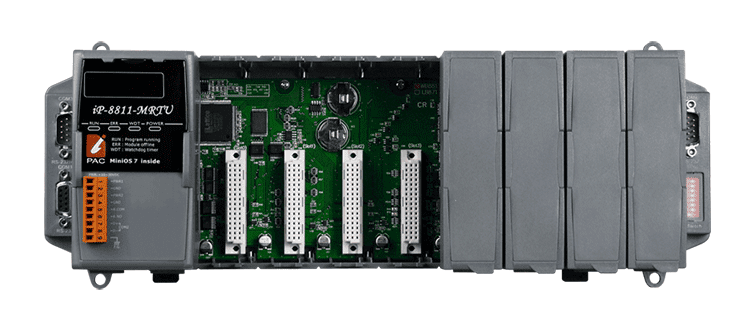

The iP-8811-MRTU CR extends a Modbus serial network with eight slots for I-8K and I-87K series I/O modules. It acts as a Modbus RTU/ASCII slave, so the analogue and digital inputs and outputs, counters and frequency modules fitted in its slots can be read and controlled from a SCADA system, HMI or PLC over the serial port.
The unit is built for harsh, electrically noisy sites. It accepts a wide +10 ~ 30 VDC supply with redundant power inputs and 1 kV isolated power input, and it operates between -25 and +75 °C. Auto configuration and LED fault indicators simplify installation and maintenance of the fitted modules.
Software support covers MiniOS7 with C language development, and the manufacturer provides SDKs for Windows XP, Windows CE 5.0/6.0, Linux and MiniOS7. The unit mounts on DIN-rail or wall, and its 8-bit DIP switch sets the address.
Applications
- Industrial monitoring and control
- Remote I/O expansion over Modbus serial networks
- Environment monitoring
- Harsh or electrically noisy installations
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU/ASCII |
| Ports: | 2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
| Isolation: | 3000 VDC (RS-485), 1 kV (power) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion | 4 GB microSD card (up to 32 GB) |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 3 x System (RUN, ERR, WDT), 1 x Power |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 8 |
| HMI | |
| Buzzer | Yes |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| Protocol | Modbus RTU/ASCII Slave |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 7.2 W |
| Mechanical | |
| Dimensions (mm) | 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
