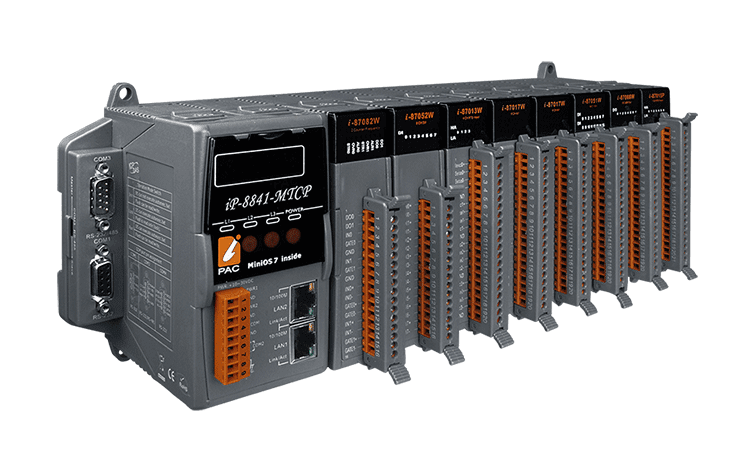

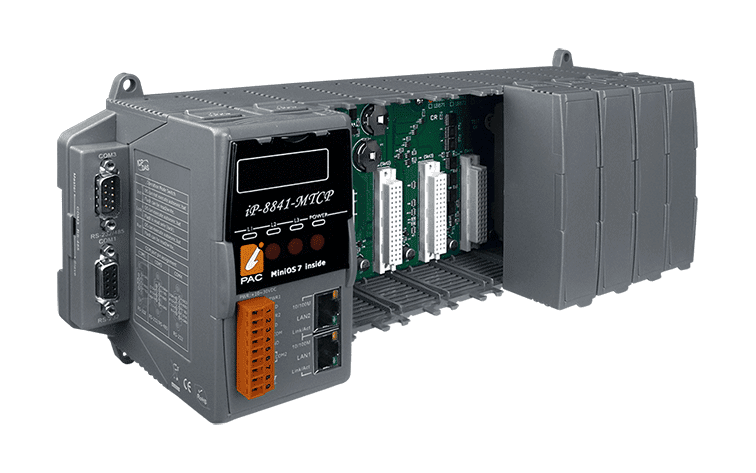

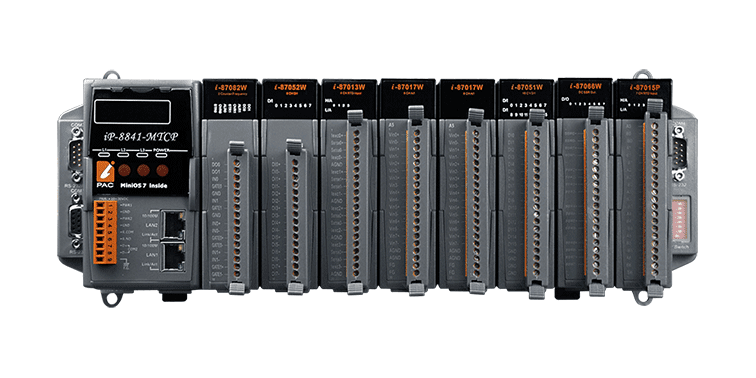

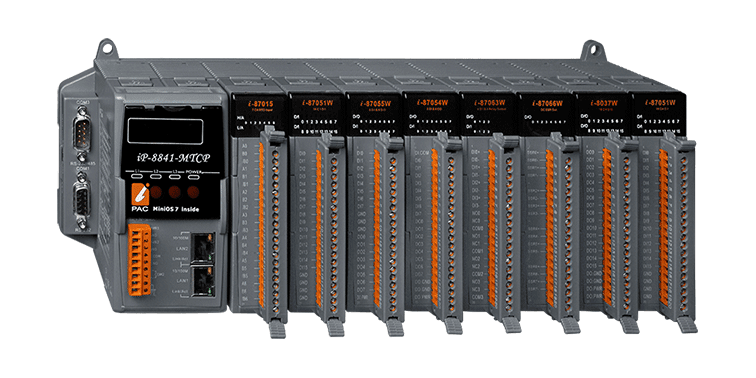

iP-8841-MTCP Modbus TCP I/O Expansion Unit, 8-Slot for I-8K and I-87K Modules
Modbus TCP expansion unit with 8 slots for I-8K and I-87K series I/O modules, two Ethernet ports and a wide 10 ~ 30 VDC power input for harsh environments.
- Expands up to 8 I-8K and I-87K series I/O module slots over Ethernet
- Modbus TCP slave plus Modbus TCP to RTU gateway function over two independent 10/100 Base-TX Ethernet ports
- Modbus RTU/ASCII slave operation on RS-232, RS-485 and RS-232/RS-485 COM ports
- Wide 10 ~ 30 VDC input with 1 kV isolation and redundant power inputs
- Operating temperature range of -25 ~ +75 °C for harsh environments
- Auto configuration, dual watchdog, LED status indicators and 5-digit display
630,00 € pro Stück
| 1–9 Stück | 630,00 € | |
|---|---|---|
| 10–30 Stück | 612,00 € | −3 % |
| ab 31 Stück | 599,00 € | −5 % |
Produktinformationen "iP-8841-MTCP Modbus TCP I/O Expansion Unit, 8-Slot for I-8K and I-87K Modules"
The iP-8841-MTCP extends I-8K and I-87K series I/O modules over Ethernet, giving Modbus TCP masters remote access to analogue input and output, digital input and output, counter and frequency modules. More than 50 compatible I/O modules are supported across its eight slots, which makes it a practical choice for remote monitoring and control in industrial plants.
It suits electrically noisy, temperature-variable cabinets. The power input accepts 10 ~ 30 VDC and is isolated, and the unit operates from -25 ~ +75 °C. Auto configuration, LED fault indication, dual watchdog protection, programmable power-on values and safe values help simplify installation, maintenance and fault handling.
For integration, the unit supports Modbus TCP and Modbus RTU/ASCII, and includes a Modbus TCP to RTU gateway function. The MiniOS7 platform can be programmed in C, with SDK support for Windows XP, Windows CE 5.0/6.0 and Linux, so engineers can adapt the preinstalled Modbus firmware to their own applications.
Applications
- Remote industrial monitoring and control
- SCADA, HMI and PLC systems using Modbus drivers
- Environmental monitoring
- Distributed I/O in harsh or electrically noisy installations
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | 2 x RJ-45 Ethernet, RS-232/RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 2 Ethernet, 4 serial |
| Isolation: | 1 kV (power), 3000 VDC (RS-485) |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Technische Daten
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 768 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion | 1 x microSD card slot, supports up to 32 GB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Run, 1 x Module offline, 1 x WDT, 1 x Power |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 8 |
| HMI | |
| Buzzer | Yes |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX |
| Protocol | Modbus TCP Slave, Modbus TCP to RTU Gateway |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| Protocol | Modbus RTU/ASCII Slave |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 7.2 W |
| Mechanical | |
| Dimensions (mm) | 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
