iPPC-4801-IoT 10.4-inch Panel PC with Atom E3845 and Windows 10 IoT
Fanless 10.4-inch touch Panel PC with Intel Atom E3845 CPU and Windows 10 IoT Enterprise LTSC for HMI, data acquisition and control. Front panel rated NEMA 4/IP65.
- Intel Atom E3845 1.91 GHz 64-bit quad-core CPU with Windows 10 IoT Enterprise LTSC preinstalled
- 10.4-inch 800 x 600 TFT display with 5-wire resistive touch panel and 400 cd/m2 brightness
- 4 GB DDR3 SDRAM and 128 GB SSD, plus a CF card slot for storage expansion
- Two RS-232/RS-422/RS-485 serial ports, one RJ-45 10/100/1000 Base-TX Ethernet port and two USB 2.0 host ports
- Redundant +10 ~ 30 VDC power inputs with 1500 VDC isolation
- Fanless metal casing with front panel rated NEMA 4/IP65 for panel mounting
Dieser Artikel wird je Auftrag kalkuliert. Nennen Sie uns die Menge, wir antworten mit Preis und Lieferzeit.
Angebot anfragen
Nicht mehr verfügbar
Produktinformationen "iPPC-4801-IoT 10.4-inch Panel PC with Atom E3845 and Windows 10 IoT"
iPPC-4801-IoT CR is a panel-mount Windows 10 IoT Enterprise computer that combines a touch display, processing and serial and Ethernet connectivity in one unit. It suits engineers who need an operator interface and a local data acquisition or control node in the same enclosure, without a separate PC and monitor.

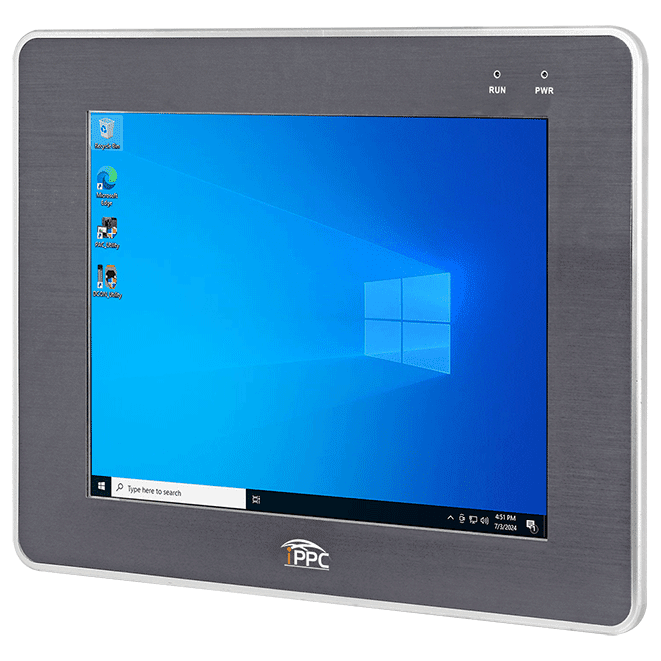

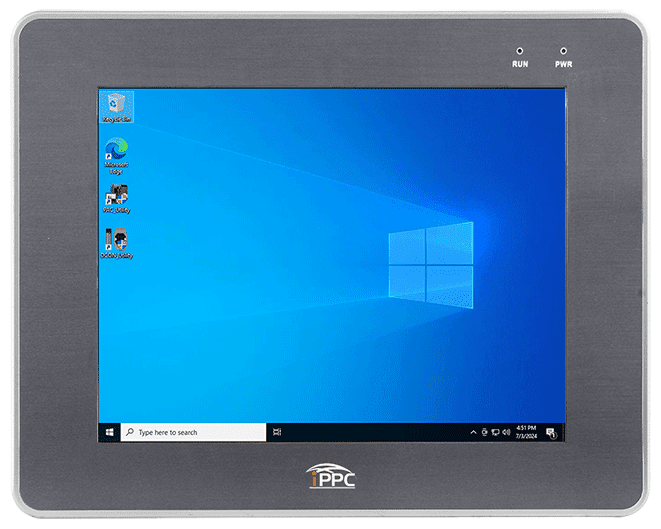

The 10.4-inch TFT screen uses a 5-wire resistive touch panel and runs at 800 x 600. Processing is handled by an Intel Atom E3845 quad-core CPU with 4 GB DDR3 SDRAM and a 128 GB SSD, with a CF card slot for additional storage. Non-volatile MRAM and EEPROM are included for data retention, and the unit provides dual watchdog timers and a real-time clock.

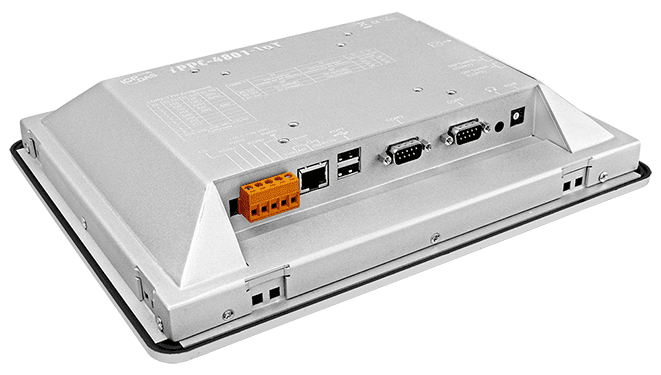

Connectivity includes one RJ-45 10/100/1000 Base-TX Ethernet port, two RS-232/RS-422/RS-485 serial ports and two USB 2.0 host ports. The power input accepts +10 ~ 30 VDC with 1500 VDC isolation and supports redundant inputs. The fanless metal casing has a front panel rated NEMA 4/IP65 and operates from -20 ~ +60 °C. Remote I/O expansion is supported through Ethernet and RS-485 I/O modules.
Applications
- HMI and operator panels
- Data acquisition
- Machine and process control
- Remote I/O expansion via Ethernet and RS-485 I/O modules
| Product type: | Panel PC |
|---|---|
| Interface: | Ethernet, RS-232/RS-422/RS-485, USB 2.0 |
| Ports: | 1 x RJ-45 Ethernet, 2 x serial, 2 x USB 2.0 |
| Isolation: | 1500 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +60 °C |
| Mounting: | Panel, VESA |
| Housing: | Metal |
Technische Daten
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC |
| Framework Support | .Net Framework 3.5, 4.0, 4.5, 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | 1 x 128 GB SSD, 1 x CF card slot |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Size | 10.4" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Earphone-out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232/RS-422/RS-485 |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1500 VDC Isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 22.0 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 291 x 229 x 53 (W x L x H) |
| Panel Cut-out (mm) | 274 x 211, ±1 (W x H) |

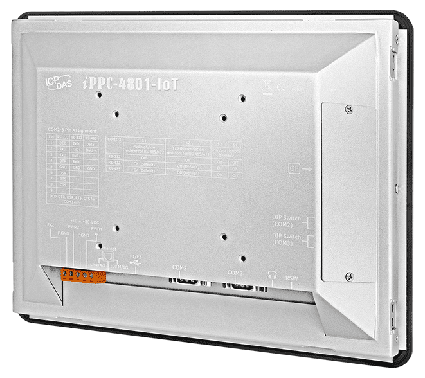

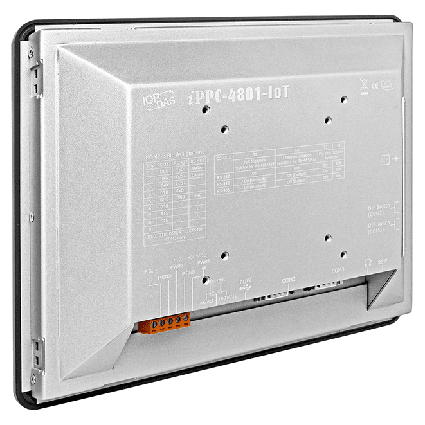

| Installation | Panel Mounting, VESA Mounting (75 x 75, 100 x 100) |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -20 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
