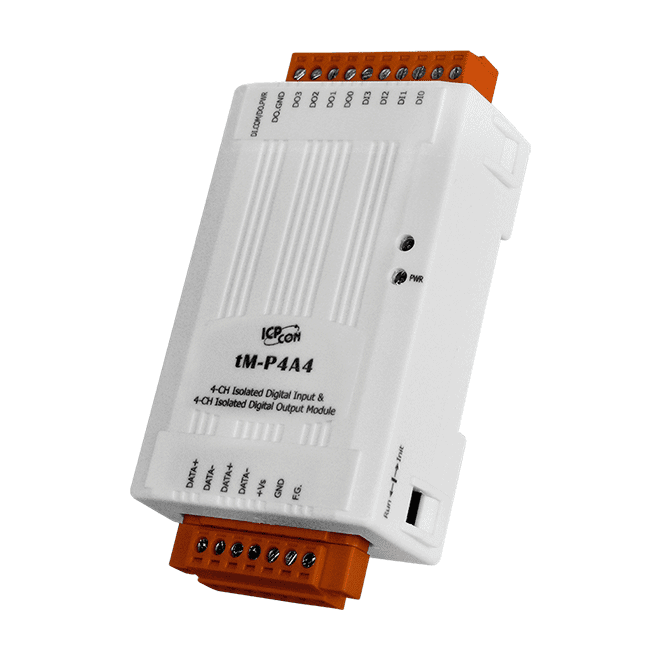

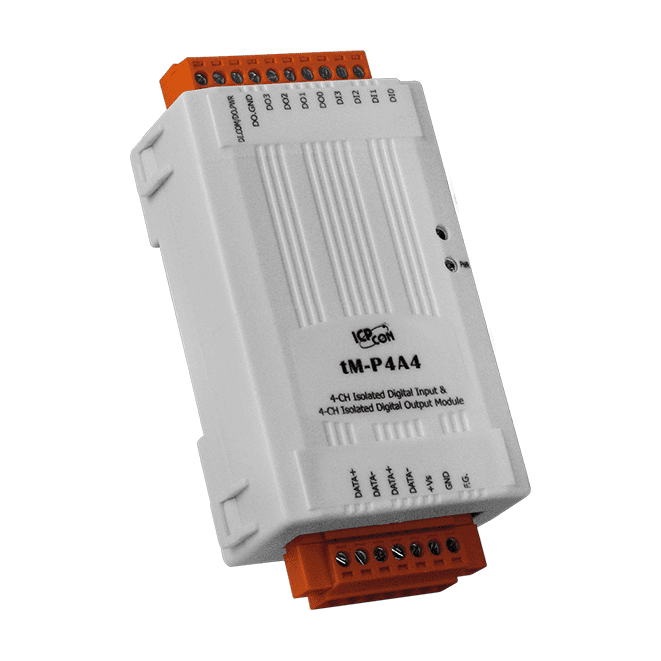

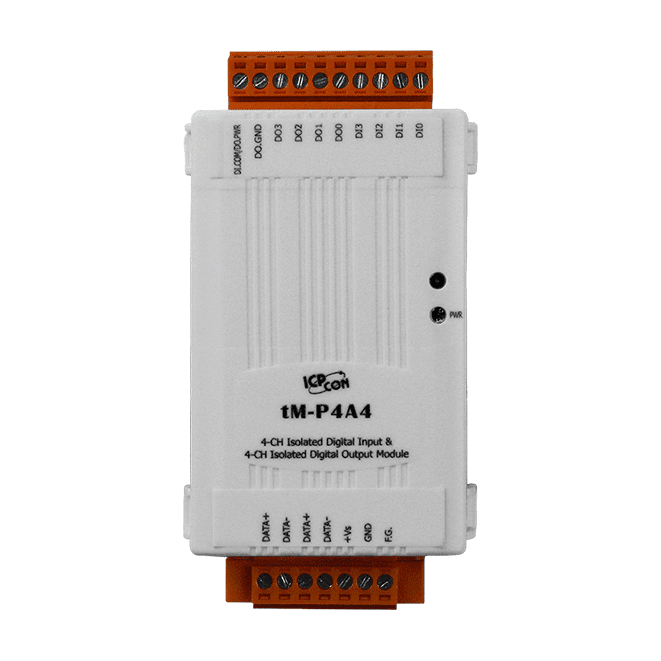

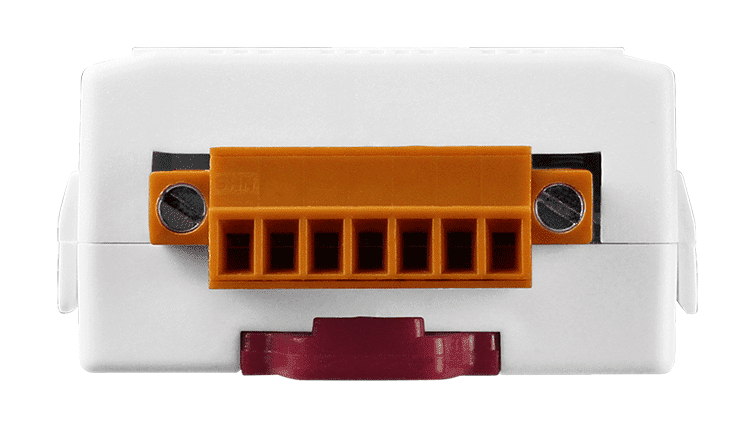

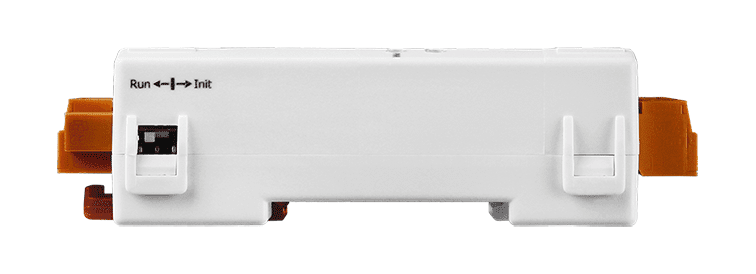

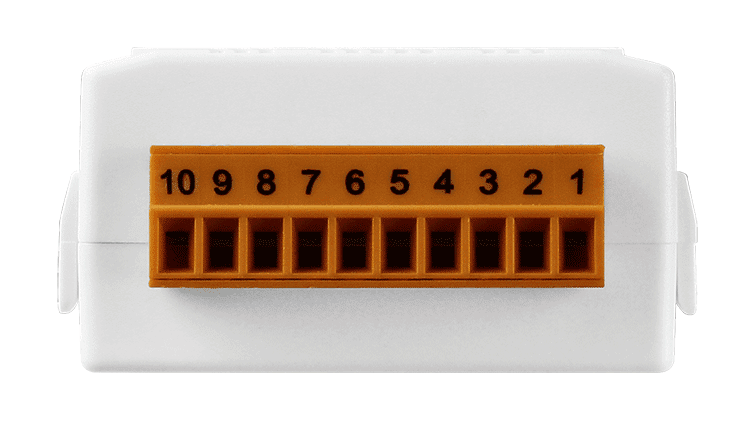

tM-P4A4 RS-485 I/O Module, 4-ch Isolated Wet DI and 4-ch PNP DO
Remote I/O module with 4 isolated wet-contact sink-type digital inputs and 4 isolated source-type (PNP) digital outputs over RS-485, with DCON and Modbus support.
- 4 sink-type wet-contact digital inputs, ON level +4.0 ~ +50 VDC
- 4 isolated source-type (PNP) digital outputs, 650 mA per channel, short-circuit protected
- All DI channels usable as 16-bit counters (max. 65535), 100 Hz frequency
- Programmable power-on and safe values for digital outputs
- Dual watchdog: module and communication (programmable)
- 3750 VDC intra-module isolation and ±4 kV contact ESD protection
106,00 € pro Stück
| 1–9 Stück | 106,00 € | |
|---|---|---|
| 10–30 Stück | 102,00 € | −4 % |
| ab 31 Stück | 100,00 € | −6 % |
Produktinformationen "tM-P4A4 RS-485 I/O Module, 4-ch Isolated Wet DI and 4-ch PNP DO"
tM-P4A4 CR is an RS-485 remote I/O module for engineers who need both digital inputs and switched digital outputs on one DIN-rail unit. The four sink-type wet-contact inputs and four source-type (PNP) outputs are each photocoupler isolated, so field wiring stays electrically separated from the control side.
Each input channel can also be used as a 16-bit counter, counting up to 65535 at up to 100 Hz, which suits pulse and totalising tasks alongside on/off control. Power-on and safe values for the outputs are programmable, so the module can define a known state at start-up and on communication fault.
The module provides a dual watchdog covering the module and communication, 3750 VDC intra-module isolation and ±4 kV ESD protection on each terminal. It is powered from 10 ~ 30 VDC and rated for an operating range of -25 ~ +75 °C.
Applications
- On/off control
- Industrial automation
- Industrial machinery
- Building automation
- Food and beverage systems
- Semiconductor fabrication
- Control systems
| Product type: | Remote I/O module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus ASCII, Modbus RTU |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Technische Daten
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Digital Input/Counter | |
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | +4.0 ~ +50 VDC |
| OFF Voltage Level | +1 VDC max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 KΩ, 0.66 W |
| Overvoltage Protection | 70 VDC |
| Digital Output | |
| Channels | 4 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 ~ +40 VDC |
| Load Current | 650 mA/channel |
| Overvoltage Protection | 47 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol | DCON, Modbus RTU, Modbus ASCII |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.5 W max. |
| Powered from Terminal Block | 10 ~ 30 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Technische Daten laut Hersteller. Änderungen vorbehalten.
