The PET-7017-10 is a PoE-powered Ethernet analog input module for engineers who need voltage or current measurement on a networked I/O node. Its inputs can be set as 10 differential or 20 single-ended channels in software, and each channel can be given its own range, so one module can serve mixed sensor types on the same network.Each channel offers a choice of voltage ranges from ±150 mV to ±10 V and current ranges of ±20 mA, 0 ~ 20 mA and 4 ~ 20 mA, selected with jumpers. Resolution is 16-bit, and the module has two sampling modes: normal mode at 10 Hz total and fast mode at 50 Hz total. Open wire detection is available for 4 ~ 20 mA inputs, and differential channels are rated for 240 Vrms overvoltage protection.Configuration and monitoring are handled through a built-in web server with Web HMI, and the module supports Modbus TCP and Modbus UDP. Access is controlled by ID, password and IP filter. The unit is powered either from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, and it mounts on a DIN rail.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

CL-202-E CR is a data logger module for monitoring indoor air quality and climate conditions. It measures CO2 with a non-dispersive infrared (NDIR) sensor, alongside temperature, relative humidity and dew point, and records the results with date and time stamps for later analysis.The module offers an RS-485 port and an Ethernet port with PoE support, so it can be integrated into existing HMI or SCADA systems over DCON, Modbus RTU, Modbus TCP or MQTT. Real-time readings can be viewed from the iAir Utility, the iOS or Android apps, or a web browser, provided the logger is on the same local network. Logged data can be exported to CSV for analysis in standard spreadsheet or industry software.Relay output for alarm signalling or control of IAQ equipmentCeiling or wall mounting, IP20 housing, Ø 150 x 53 mmOperating temperature 0 ~ 50°C, non-condensing humidity range 10 ~ 90% RHApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehouse managementMuseums, archives and galleriesIndoor or underground parking lot air quality monitoring

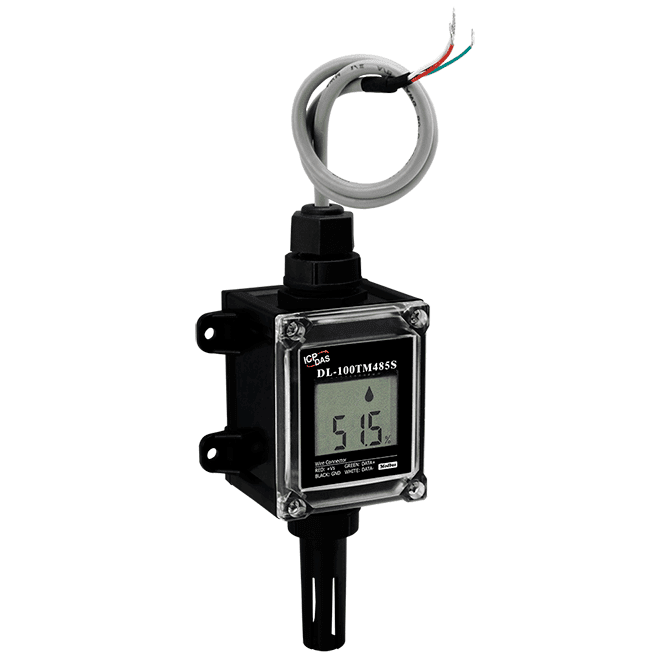

DL-100TM485S is a black-cover, IP66 remote data logger for monitoring temperature and relative humidity over a -20 to +60 °C and 0 to 100% RH measurement range. Readings are stored internally, shown on an LCD and made available over RS-485 using Modbus RTU, so the module can feed a supervisory system or be read on site.This non-P version has a typical accuracy of ±0.4 °C and ±3% RH between 20 and 80% RH. Logging intervals run from 10 seconds to 1 day, and when storage is full the module can either overwrite older records or stop logging, as configured.Configuration, retrieval and charting are handled with the DL Utility, which can export data to Excel. The unit runs from 10 to 30 VDC, mounts on a DIN-rail or wall, and is rated IP66 for harsh or washdown environments.ApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehousesMuseums, archives and galleries

The DL-303 CR records carbon monoxide, carbon dioxide, temperature, humidity and dew point together, with date and time stamps on every record. Readings are shown simultaneously on a 2.8-inch touch screen, and a single relay output can drive an alarm device or an indoor air quality (IAQ) control device.Data can be read over RS-485 using DCON or Modbus RTU, or over Ethernet using Modbus TCP or MQTT. The unit can be powered from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, which simplifies installation where a network cable is already present. Configuration is available through the touch screen or the built-in web server.Logged data can be downloaded and exported to CSV for analysis. Free Windows utility software, iOS and Android apps are included, and multilingual on-screen messages can be shown to prompt operators. The device is listed with CE, UKCA, FCC, RoHS and WEEE certification.ApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehouse managementMuseums, archives and galleries
